Air Conditioning Systems

RAM-Series

ATTENTION: It has come to our note that a counterfeit website 'WWW.AKABISHI.COM' pretending as sister concern of MITSUBISHI ELECTRIC INDIA PVT LTD, displaying and retailing our registered Brand product 'AKABISHI' unauthorizedly through this fake website with purpose to defraud the customers. We would like to inform all GENERAL PUBLIC that MITSUBISHI ELECTRIC INDIA PVT LTD has no sister concern in INDIA and 'AKABISHI' a product of Mitsubishi Electric India is sold through our Authorized Channel Partners on PAN India basis, details of which is available on our registered website www.Mitsubishielectric.in or www.in.mitsubishielectric.com. We have no relations with WWW.AKABISHI.COM, hence if any customer may buy any type of AKABISHI product from this counterfeit website, Company will not be responsible for the product, payment and any kind of support services. Kindly purchase Aircon products Mitsubishi Electric and AKABISHI from our Authorized Channel Partner only.: BE VIGILANT
Total Capacity / Model Name
Capacity 1.8
Rating 3 Star   3 Star
Refrigerant R32 R32
MRP₹ 65700
Catalogue
Add to Cart Add to cart

Features

Fast Cooling

Micrparticle catching Filter

DC Fan Motor

Auto Restart

Blue Fin ( Anti Corrossion)

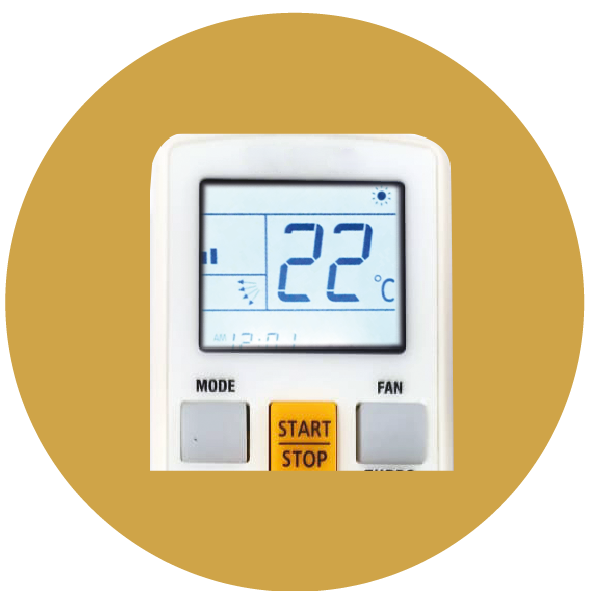

LED Back Light

Technical Specifications

Type (Cooling)
Indoor Unit
RAM-AE22VG
Outdoor Unit
RBM-AE22VG
Performance Parameters
Capacity (Tr) 1. 8 Tr
Star Rating - As Per BEE 3 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  6150 W
Rated Power Input  1575 W
ISEER 3.9
Rated Current  (Amps) 7.2
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) 1400/1200/1080/980
Indoor Noise(Low/Mid/Hi/Turbo Speed) 46/47/49/54
Refrigerant R32  R32
Dimensions & Weight
Indoor unit Net Dimensions (W x D x H) mm 1100x250x330
Net Weight kg 14
Outdoor unit Net Dimensions (W x D x H) mm 810x301x594
Net Weight kg 37
Connecting Pipe Liquid and Gas Side Dia mm 15.88/6.35
Maximum Length m  15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
