Total Capacity / Model Name
Capacity 1 Tr
Rating 3 Star   3 Star
Refrigerant R32 R32
MRP₹ 39740
Catalogue
Add to Cart Add to cart

Description



Features

Fast Cooling

Micrparticle catching Filter

DC Fan Motor

Auto Restart

Blue Fin ( Anti Corrossion)

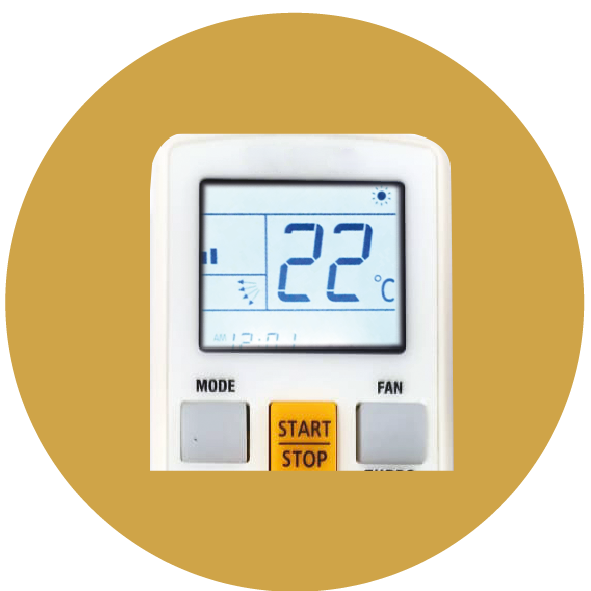

LED Back Light

Technical Specifications

Type (Cooling)
Indoor Unit
RAM-SE13VG
Outdoor Unit
RBM-SE13VG
Performance Parameters
Capacity (Tr) 1 Tr
Star Rating - As Per BEE 3 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  3400 W
Rated Power Input  872 W
ISEER 3.9
Rated Current  (Amps) 3.98
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) 790/650/590/545
Indoor Noise(Low/Mid/Hi/Turbo Speed) 43/44/48/50
Refrigerant R32  R32
Dimensions & Weight
Indoor unit Net Dimensions (W x D x H) mm 800x230x295
Net Weight kg 9.3
Outdoor unit Net Dimensions (W x D x H) mm 781x241x557
Net Weight kg 30
Connecting Pipe Liquid and Gas Side Dia mm 12.7/6.35
Maximum Length m 15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
