Air Conditioning Systems

MS-AJZ

ATTENTION: It has come to our note that a counterfeit website 'WWW.AKABISHI.COM' pretending as sister concern of MITSUBISHI ELECTRIC INDIA PVT LTD, displaying and retailing our registered Brand product 'AKABISHI' unauthorizedly through this fake website with purpose to defraud the customers. We would like to inform all GENERAL PUBLIC that MITSUBISHI ELECTRIC INDIA PVT LTD has no sister concern in INDIA and 'AKABISHI' a product of Mitsubishi Electric India is sold through our Authorized Channel Partners on PAN India basis, details of which is available on our registered website www.Mitsubishielectric.in or www.in.mitsubishielectric.com. We have no relations with WWW.AKABISHI.COM, hence if any customer may buy any type of AKABISHI product from this counterfeit website, Company will not be responsible for the product, payment and any kind of support services. Kindly purchase Aircon products Mitsubishi Electric and AKABISHI from our Authorized Channel Partner only.: BE VIGILANT
Total Capacity / Model Name
Capacity 1.5 Tr
Rating 2 Star   2 Star
Refrigerant R32 R32
MRP₹ 45170
Catalogue
Add to Cart Add to cart

Features

4 Way Swing

DC Fan Motor

Eco Cool

Grooved Piping

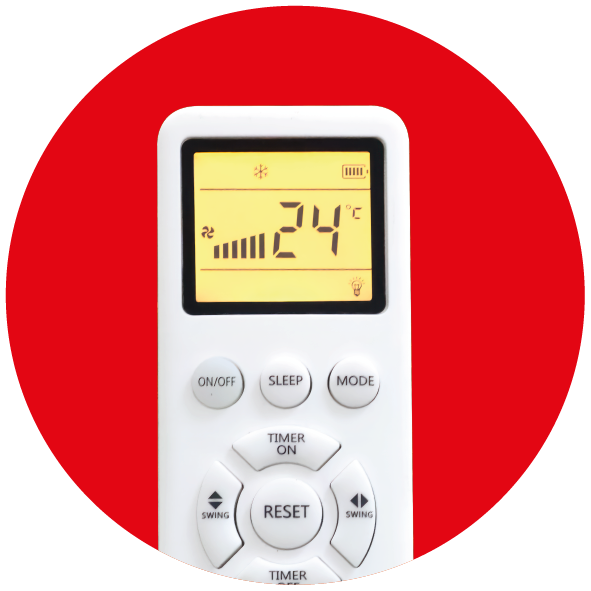

LCD Remote Control

Wide & Long Airflow

Technical Specifications

Type (Cooling)
Indoor Unit
MS-AJZ18VF
Outdoor Unit
MU-AJZ18VF
Performance Parameters
Capacity (Tr) 1.5 Tr
Star Rating - As Per BEE 2 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity 5100 W
Rated Power Input 1450 W
ISEER 3.52
Rated Current  (Amps) 6.62
Indoor Air Flow (m3/h) (Turbo/Hi/Mi/Lo) 1000
Indoor Noise(Low/Mid/Hi/Turbo Speed) 40/42/44/49
Refrigerant R32
Dimensions & Weight
IDU Dimension Net Dimensions (W x D x H) mm 1000 x 230 x 295
Net  Weight kg 11
Outdoor unit Net Dim (W * D * H) mm 781 x 241 x 557
Net Weight kg 34
Connecting Pipe Liquid and Gas Side Dia mm 12.7/6.35
Maximum Length m 15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
Installation Kit (Includes Copper Kit/Insulation/Wire)   Included
