Total Capacity / Model Name
Capacity 1.5 Tr
Rating 3 Star   3 Star
Refrigerant R32 R32
MRP₹ 49040
Catalogue
Add to Cart Add to cart

Features

4 Way Swing

Anti Rust

DC Fan Motor

Eco Cool

Grooved Piping

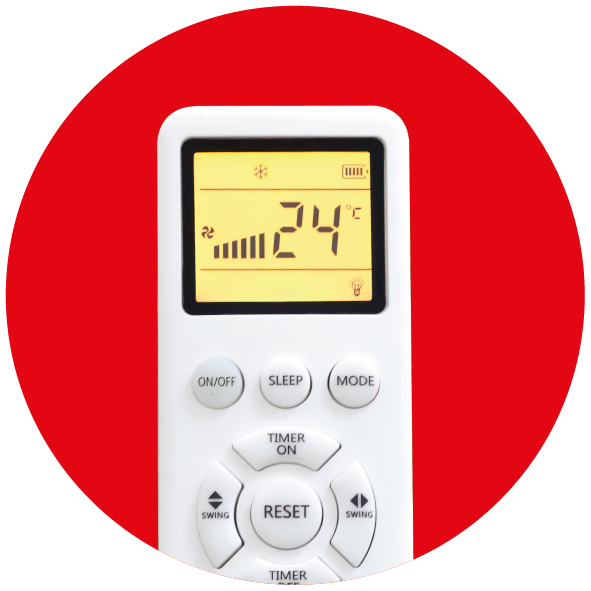

LCD Remote Control

PM Filter

Wide & Long Airflow

Technical Specifications

Type (Cooling)
Indoor Unit
MS-AJZ18VF
Outdoor Unit
MU-AJZ18VF
Performance Parameters
Capacity (Tr) 1.5 Tr
Star Rating - As Per BEE 3 Star   bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  5050 W
Rated Power Input  1295 W
ISEER 3.89
Rated Current  (Amps) 5.91
Indoor Air Flow (m3/h) (Turbo/Hi/Mi/Lo) 1020
Indoor Noise(Low/Mid/Hi/Turbo Speed) 40/42/44/49
Refrigerant R32
Dimensions & Weight
IDU Dimension Net Dimensions (W x D x H) mm 1000 x 230 x 295
Net  Weight kg 11
Outdoor unit Net Dim (W * D * H) mm 810 x 301 x 594
Net Weight kg 37
Connecting Pipe Liquid and Gas Side Dia mm  12.7/6.35
Maximum Length m 15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
Installation Kit (Includes Copper Kit/Insulation/Wire)   Included
