Total Capacity / Model Name
Capacity 1.8 Tr
Rating 5 Star   5 Star
Refrigerant R32 R32
MRP₹ 71400
Catalogue
Add to Cart Add to cart

Features

DC Inverter

DC Fan Motor

Auto Restart

Fast Cool

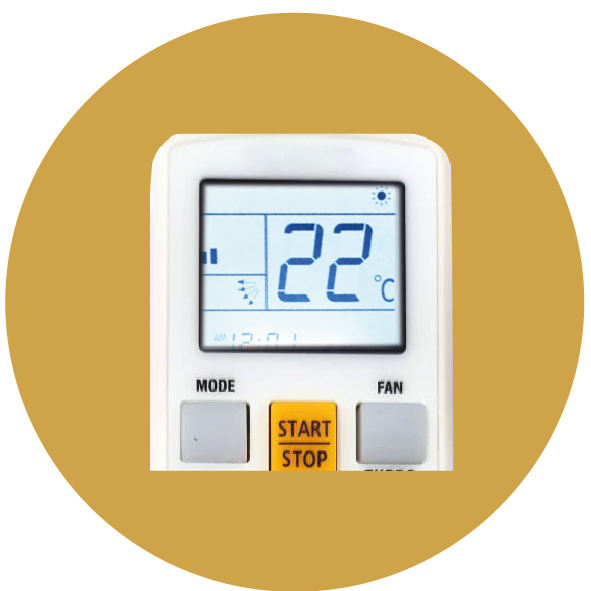

LED Back Light

Technical Specifications

Type (Cooling)
Indoor Unit
RAY-UE22VG
Outdoor Unit
RBY-UE22VG
Performance Parameters
Capacity (Tr) 1.8 Tr
Star Rating - As Per BEE 5 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  6100 W
Rated Power Input 1550 W
ISEER 5.1
Rated Current  (Amps) 7.08
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) 1400/1150/1050/980
Indoor Noise(Low/Mid/Hi/Turbo Speed) 46/47/49/54
Refrigerant R32  R32
Dimensions & Weight
Indoor unit Net Dimensions (W x D x H) mm 1100x250x330
Net Weight kg 14.2
ODU Dimension Net Dimensions (W x D x H) mm 810x301x645
Net Weight kg 33.2
Connecting Pipe Liquid and Gas Side mm 15.8/6.35
Maximum Length m  15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
