Total Capacity / Model Name
Capacity 1.5 Tr
Rating 5 Star   5 Star
Refrigerant R32 R32
MRP₹ 53190
Catalogue
Add to Cart Add to cart

Features

DC Inverter

DC Fan Motor

Auto Restart

Fast Cool

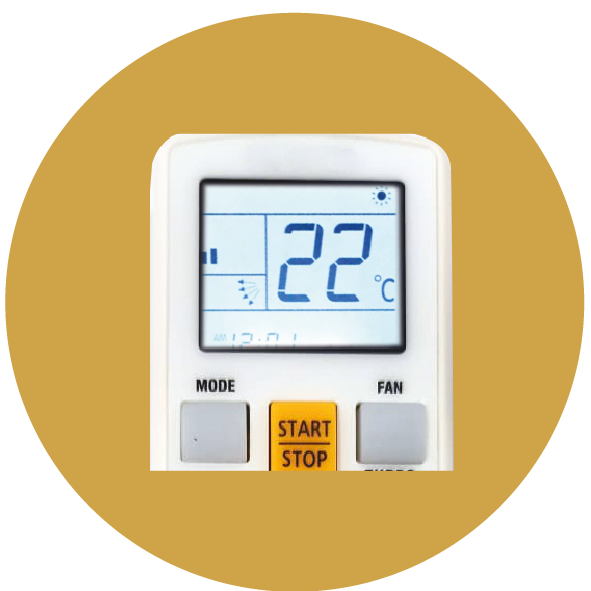

LED Back Light

Technical Specifications

Type (Cooling)
Indoor Unit
RAY-UE18VG
Outdoor Unit
RBY-UE18VG
Performance Parameters
Capacity (Tr) 1. 5 Tr
Star Rating - As Per BEE 5 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  5050 W
Rated Power Input 1255 W
ISEER 5.1
Rated Current       (Amps) 5.73
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) 1050/920/830/790
Indoor Noise(Low/Mid/Hi/Turbo Speed) 44/45/48/51
Refrigerant R32  R32
Dimensions & Weight
Indoor unit Net Dimensions (W x D x H) mm 1000x230x295
Net Weight kg 11.5
Outdoor unit Net Dimensions (W x D x H) mm 781x281x555
Net Weight kg 28.8
Connecting Pipe Liquid and Gas Side Dia mm 12.7/6.35
Maximum Length m  15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
