Air Conditioning Systems

RAY-Series

ATTENTION: It has come to our note that a counterfeit website 'WWW.AKABISHI.COM' pretending as sister concern of MITSUBISHI ELECTRIC INDIA PVT LTD, displaying and retailing our registered Brand product 'AKABISHI' unauthorizedly through this fake website with purpose to defraud the customers. We would like to inform all GENERAL PUBLIC that MITSUBISHI ELECTRIC INDIA PVT LTD has no sister concern in INDIA and 'AKABISHI' a product of Mitsubishi Electric India is sold through our Authorized Channel Partners on PAN India basis, details of which is available on our registered website www.Mitsubishielectric.in or www.in.mitsubishielectric.com. We have no relations with WWW.AKABISHI.COM, hence if any customer may buy any type of AKABISHI product from this counterfeit website, Company will not be responsible for the product, payment and any kind of support services. Kindly purchase Aircon products Mitsubishi Electric and AKABISHI from our Authorized Channel Partner only.: BE VIGILANT
Total Capacity / Model Name
Capacity 1.5 Tr
Rating 3 Star   3 Star
Refrigerant R32 R32
MRP₹ 44340
Catalogue
Add to Cart Add to cart

Features

DC Inverter

DC Fan Motor

Auto Restart

Fast Cool

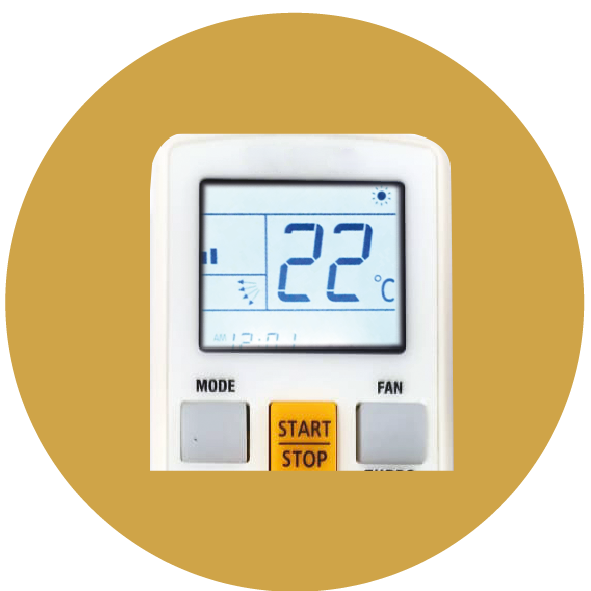

LED Back Light

Technical Specifications

Type (Cooling)
Indoor Unit
RAY-AE18VG
Outdoor Unit
RBY-AE18VG
Performance Parameters
Capacity (Tr) 1. 5 Tr
Star Rating - As Per BEE 3 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  5150 W
Rated Power Input 1570 W
ISEER 3.98
Rated Current       (Amps) 7.2
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) 1050/920/830/790
Indoor Noise(Low/Mid/Hi/Turbo Speed) 44/45/48/49
Refrigerant R32  R32
Dimensions & Weight
Indoor unit Net Dimensions (W x D x H) mm 1000 x 230 x 295
Net Weight kg 11.0
Outdoor unit Net Dimensions (W x D x H) mm 781 x 281 x 555
Net Weight kg 23.5
Connecting Pipe Liquid and Gas Side Dia mm 12.7/6.35
Maximum Length m  15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
