Total Capacity / Model Name
Capacity 1 Tr
Rating 3 Star   3 Star
Refrigerant R32 R32
MRP₹ 35500
Catalogue
Add to Cart Add to cart

Features

DC Inverter

DC Fan Motor

Auto Restart

Fast Cool

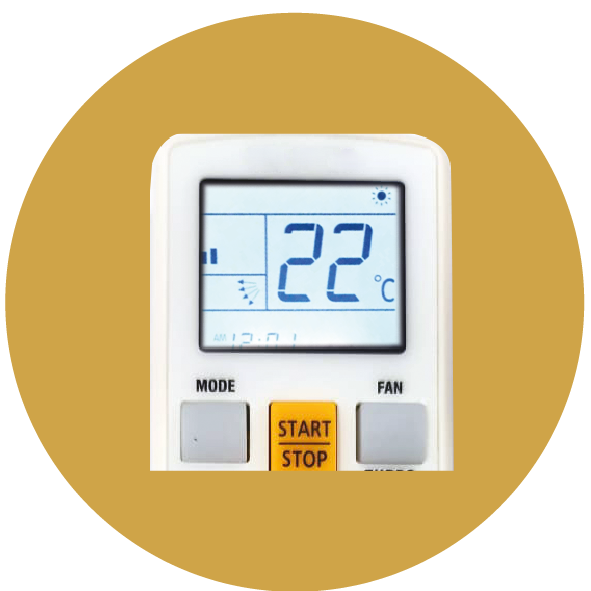

LED Back Light

Technical Specifications

Type (Cooling)
Indoor Unit
RAY-AE13VG
Outdoor Unit
RBY-AE13VG
Performance Parameters
Capacity (Tr) 1.0 Tr
Star Rating - As Per BEE 3 Star  bee rating
Power Supply 230 V / 50 Hz / Single Phase
Rated Capacity  3500 W
Rated Power Input  1060 W
ISEER 3.86
Rated Current       (Amps) 4.9
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) 790/620/581/545
Indoor Noise(Low/Mid/Hi/Turbo Speed) 43/44/47/48
Refrigerant R32  R32
Dimensions & Weight
Indoor unit Net Dimensions (W x D x H) mm 800 x 230 x 295
Net Weight kg 9.3
Outdoor unit Net Dimensions (W x D x H) mm 781 x 241 x 557
Net Weight kg 22
Connecting Pipe Liquid and Gas Side Dia) mm 9.52/6.35
Maximum Length mm  15
Maximum Elevation m 10
Ambient Operating Range   °C 48°
